    Concrete Solar Panel Ground Mount Solar Tracking System Backtracking function

    Ask Lasest Price
    Brand Name : Good Future Solar
    Model Number : MG/ZG
    Certification : CE/ISO/BV/SGS or designated
    Price : Negotiate
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000MW per Month
    Delivery Time : 30 Working Days after design confirm
    • Product Details
    • Company Profile

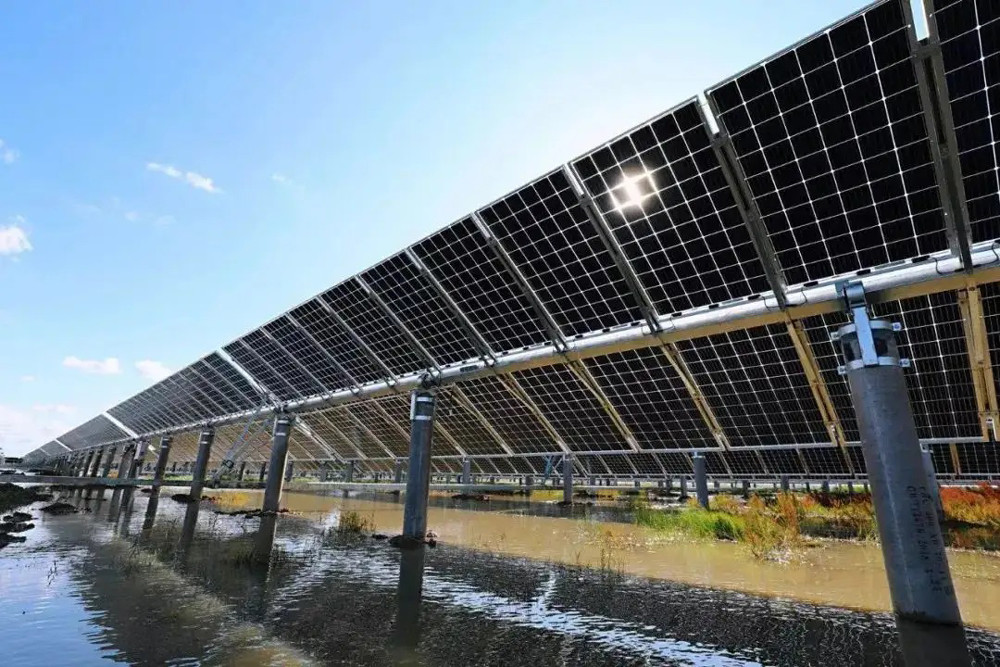

    Concrete Solar Panel Ground Mount Solar Tracking System Backtracking function

    Wholesale Concrete Solar Panel Ground Panel Solar Mounting Tracker System

    Working principle:
    Popular solar trackers in the market has 3 types:passive, active and open loop trackers which is distinguished from drive and sensing or positioning system that they incorporate.
    Passive trackers: The tracker has a gas sensing device and the tracker will move across the sky by using suns radiation to heat gases.
    Active trackers: The tracker has an electric or hydraulic drives and some type of gearing or actuator. Good future 1P single row solar panels tracker belongs to this type of active trackers. It’s also the most popular type in the market right now.
    Open loop trackers: Use no sensing but instead determines the position of the sun through pre-record data for a particular site.

    Functions:

    1.Intelligent feedback

    The controller adopts the inclination sensor of the international brand. Real-time closed-loop feedback tracks the tracking angle of the bracket, fully automatic tracking, without manual intervention.

    2. Night reset function

    At night, the components are restored to the initial maximum wind resistance state, and the errors caused by the day's operation are eliminated to ensure the accuracy of the entire tracking system;

    3. Backtracking function

    Reduces shading and maximizes power generation;

    4.Information collection function

    Real-time acquisition of component tilt Angle; Real-time acquisition of weather conditions, coordinate position, altitude, time and other information;


    Technical Parameters of single axis solar tracking system

    Wholesale Concrete Solar Panel Ground Panel Solar Mounting Tracker System
    Tracking Range士 60°
    Driving SystemSlew drive, 28VDC motor
    Modules per TrackerMax.90 modules per tracker
    System Voltage1000 V or 1500 V
    Ground Coverage Ratio≥ 25%
    Power Consumption0.2-0.5kWh/day
    Power Supply ModePowered by PV strings, back-up lithium battery
    Standard Design Wind Speed18m/s
    Module SupportedAll commercially available modules
    Operation Temperature-40℃ - 70℃
    Control AlgorithmAstronomical algorithms + Tilt sensor close loop
    Tracking Accuracy≤ 1°
    String-PoweredYes
    BacktrackingYes
    Communication OptionsLoRa wireless /RS 485 cable
    Night PositionYes
