    Off Grid 1 Axis Tracking Solar Panel System Night Position

    Off Grid Single Axis Solar Panel Tracker System

    Working principle:
    Ground mounting single axis solar tracking system components slew drive solar panel mounting brackets is controlled by the tracking controller, with simple structure, easy installation, flexible response, good reliability and strong fault identification ability. Compared with traditional fixed inclination installation, the generating capacity can be increased by 15%-20% (depending on local conditions).

    Functions:
    1. Single row independent drive unit, no connection between row and row, to ensure convenient traffic between square array;
    2. Slew drive design, with high transfer efficiency and good environmental adaptability, the drive unit can be maintained free for 25 years;
    3. Adopt the form of self-power supply, without external power supply;
    4. Independently developed MCU microcomputer control system;
    5. Intelligent battery management system (BMS) and automatic alarm functions can ensure the system's long-term reliable operation.

    Technical Parameters of single axis solar tracking system


    Off Grid Single Axis Solar Panel Tracker System
    Tracking Range士 60°
    Driving SystemSlew drive, 28VDC motor
    Modules per TrackerMax.90 modules per tracker
    System Voltage1000 V or 1500 V
    Ground Coverage Ratio≥ 25%
    Power Consumption0.2-0.5kWh/day
    Power Supply ModePowered by PV strings, back-up lithium battery
    Standard Design Wind Speed18m/s
    Module SupportedAll commercially available modules
    Operation Temperature-40℃ - 70℃
    Control AlgorithmAstronomical algorithms + Tilt sensor close loop
    Tracking Accuracy≤ 1°
    String-PoweredYes
    BacktrackingYes
    Communication OptionsLoRa wireless /RS 485 cable
    Night PositionYes

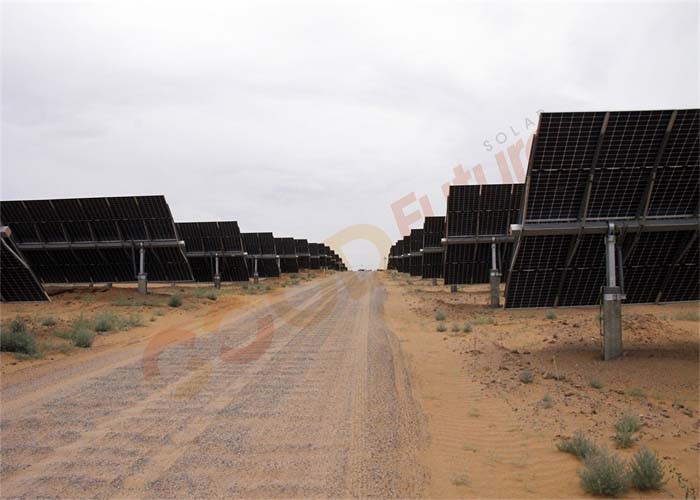

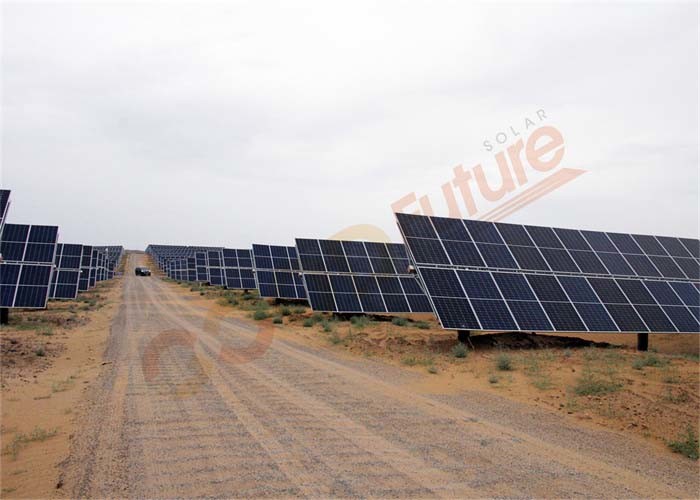

    Off Grid 1 Axis Tracking Solar Panel System Night PositionOff Grid 1 Axis Tracking Solar Panel System Night PositionOff Grid 1 Axis Tracking Solar Panel System Night PositionOff Grid 1 Axis Tracking Solar Panel System Night Position
