Popular Smart Solar Tracking System with Wireless Communication
System
Company Info:
Good Future Solar is professional supplier in design and production
of smart solar tracking system and solar tracker controller for
photovoltaic industry according to customized projects needs. We
focus on giving most satisfied service on each procedure like
product’s design, raw material procurement, quality control, cost
control, delivery and logistics control etc. We believe that help
our customer to get more success and value creation is the company
value, in this way we stick to giving top priority to the interest
of customers. Customers who join us will create a good future!
Parameters of Smart Solar Tracking System
| Technical Parameters |
| Tracking Range | 士 60° |
| Driving System | Slew drive, 24VDC motor |
| Modules per Tracker | Max.90 modules per tracker |
| System Voltage | 1000 V or 1500 V |
| Structure Material | Hot dipped galvanized/Pre-galvanized steel |
| Power Supply | Powered by PV strings,back-up lithium battery |
| Module Supported | All commercially available modules |
| Operation Temperature | -30℃ - 60℃ |
| Control Algorithm | Astronomical algorithms + Tilt sensor close loop |
| Backtracking | Yes |
| Night Position | Yes |
Product Info:

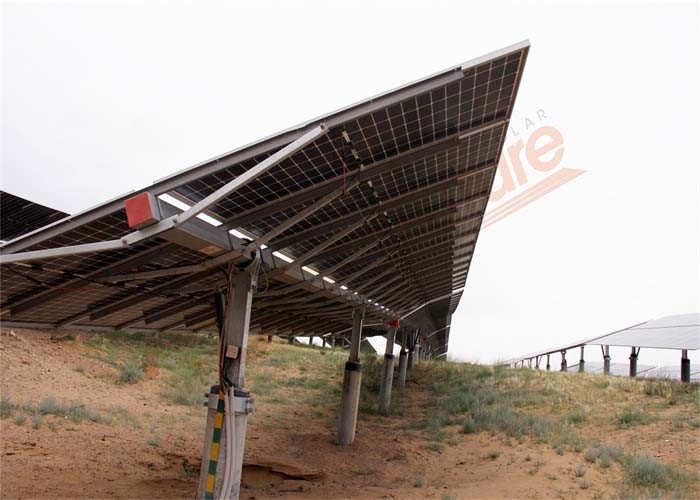

Good Future Smart Solar Tracking System is a device that drive the
solar panels rotate toward the sun. Since the sun moves from east
to west, to make more power generation, the system make PV panels
track sunlight in east-west direction, it’s suitable for lower
latitudes with high sun height angle.
Compare with fixed sun panel tracking, power generation efficiency
of Smart Solar Tracking System is 20-30% higher and it can be
installed at most ground level condition like sand and hills. Our
single axis solar tracker includes mounting bracket for solar cell
panel, horizontal shaft, rotation drive mechanism, wind speed
detection device and tracking controller. Single axis solar tracker
has one degree of freedom that acts as an axis of rotation. The
axis of rotation of single axis trackers is typically aligned along
a true North meridian. It is possible to align them in any cardinal
direction with advanced tracking algorithm.
Choose Good Future Solar Smart Solar Tracking System will Provide
Some Advantages:
1. Optimal efficient installation
Compare with the market, after project design and business
accounting, the Good future Single Axis Tracker offers fewer
foundations for each average MW.
2. Simple link with tracker system Controller
Good Future Solar offers different types of tracker controller:
with/without Lithium battery or self-power controller. All these
just need very easy link and no more operations after installation.
3. High Reliability and Durability
All the structures and accessories are using good material with
high corrosion resistance quality and long life period, Good future
Single Axis Tracker System protects itself in high wind and faults
conditions.
Product Application:
Single axis solar tracker is characterized by simple structure and
low cost. It is suitable for lower latitudes with high sun height
angle. Its power generation efficiency is 30% higher than fixed sun
panel tracking. The solar tracking system can be installed at
ground level or roof.
Agriculture Complementary
Single Axis Solar Tracker can be used in agriculture industry also,
it refers to the combination of agriculture and photovoltaic power
generation, normally photovoltaic panel can be installed on above
the fields, farmers can grow crops with low light requirements like
flowers and suffruticosa plants, the PV panels can provide a good
cover protecting for the plants under their shadow. The development
of photovoltaic power generation and Agriculture industry can
eventually form a good ecological co-development model.
