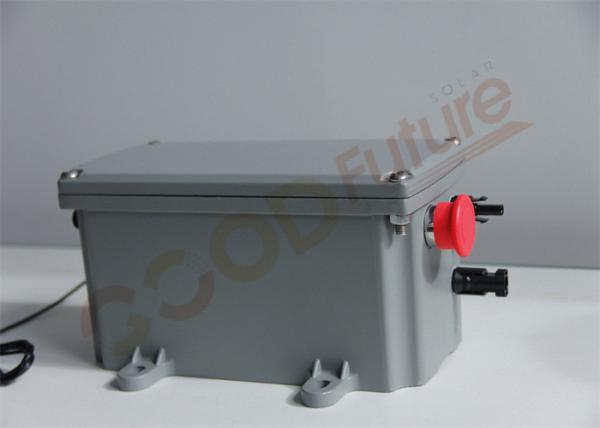

Backtracking Horizontal Single Axis 2P Solar Tracking Controller
Solar tracking control system adjust the direction that a solar
panel is facing according to the position of the Sun in the sky.
Performances and productivity of solar plant are heavily depend on
how accurately receiving units are pointed to the sun, hence the
tracking control intelligence is crucial to drive maximized energy
and profit yield. As certified by independent third parties, TCI
exceeds state-of-the-art systems delivering seamless,
high-precision control intelligence.Our tracking control unit is
used to control the tracker movements by means of the integrated
inclinometer and the powerful motor control output.
Technical Parameters of Backtracking Horizontal Single Axis 2P
Solar Tracking Controller
| Technical parameters |
| Tracking Range | 士 60° |
| Driving System | Slew drive, 28VDC motor |
| Terrain Adaption | Up to 20% N-S slope |
| Structure Material | Hot dip galvanized steel |
| Power Consumption | 0.2-0.5kWh/day |
| Power Supply Mode | Powered by PV strings, back-up lithium battery |
| Standard Design Wind Speed | 18m/s |
| Module Supported | All commercially available modules |
| Operation Temperature | -40℃ - 70℃ |
| Control Algorithm | Astronomical algorithms + Tilt sensor close loop |
| Tracking Accuracy | ≤ 1° |
| String-Powered | Yes |
| Backtracking | Yes |
| Communication Options | LoRa wireless /RS 485 cable |
| Night Position | Yes |
Advantage:
1. Efficient and fast engineering of the entire automation reduces
time and costs by up to 20 %
2. Fully programmed and tested function blocks of the free solar
tracking toolbox
3. Fast, precise, and reliable adjustment of the tracking axes
4. Simplified commissioning and remote diagnostics by means of the
integrated web server
5. Easy communication among all the components of a solar farm
6. Increased energy yield through backtracking function
Functions:
1. Smart control algorithm. Adopt time control + angle sensor to
form closed-loop control, no Angle accumulation error,
high-precision and reliable tracking;
2. Comprehensive protection mechanism. Wind protection, snow
protection, limit protection, over-current protection, over/under-
voltage protection, etc;
3. Fault self-diagnosis mechanism. System automatic detection,
automatic judgment, automatic alarm, automatic recovery after
troubleshooting, etc;
4. Modular design, easier for on-site troubleshooting and
maintenance;
5. Working temperature: -40℃ ~ 70℃;
6. Protection grade IP68, suitable for all kinds of outdoor
environments;
About us:
Good Future Solar is a high-tech company in the clean energy
industry, registered in China, address: Zhengzhou East New
District, Henan Province, China. Our company is committed to
provide the solar products of high reliability with competitive
price to our domestic and foreign customers. Strive to build our
brand in terms of leading technology, high quality and efficient
service.Good future solar has a professional management team, we
have gains rich experiences on the solar power generation, and the
designing, manufacturing, commissioning of the single axis tracking
system. Our company always values customer’s needs as the highest
priority, ready to provides technical support to our customers at
any time, to solve their problems in the operation of PV power
plant and solar tracking system.
