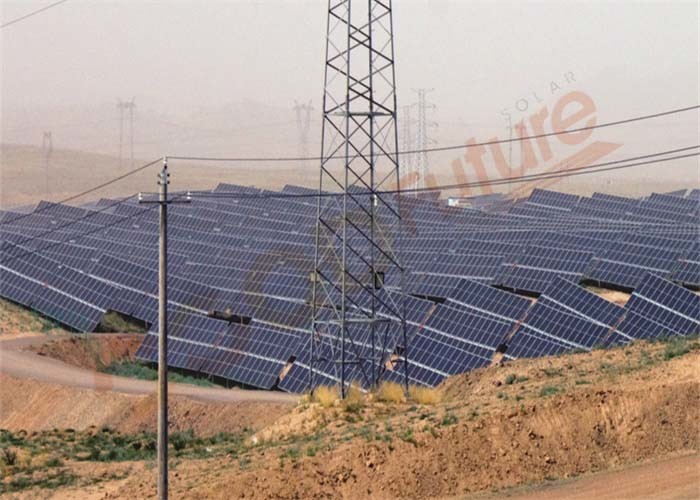

Independent Horizontal Single Axis Solar Tracker
Working principle:
Horizontal single axis solar trackers adjust the direction that a
solar panel is facing according to the position of the Sun in the
sky. By keeping the panel perpendicular to the Sun, more sunlight
strikes the solar panel, less light is reflected, and more energy
is absorbed. That energy can be converted into power.
Our tracker adopts slew drive, simple overall structure, and easy
to install and maintain. The self-balancing structure of the system
can reduce mechanical wear and extend the life of the motor. At the
same time, the fragile and consumable parts were chosen standard
products in the market, which make the maintenance and replacement
of the motor easier.
Product info:
1. Single row independent drive unit, no connection between row and
row, to ensure convenient traffic between square array;
2. Slew drive design, with high transfer efficiency and good
environmental adaptability, the drive unit can be maintained free
for 25 years;
3. Adopt the form of self-power supply, without external power
supply;
4. Free obstacles among trackers in N-S direction, easy to maintain
and clean.
5. Design configured with one single set of controller, which
ensures point-to-point real-time monitoring, easy to detect fault
points in time and reduce output loss.
Advantages:
1. Alarm management fully configurable by customer.
2. Backtracking Algorithm, avoiding shadows and increasing
production.
3. Easy integration into the plant’s communications system
4. Remote monitoring and predictive maintenance.
5. Quick commissioning.
6. Wide range of motion: 120° (± 60°).
7. Backtracking Algorithm, avoiding shadows and increasing
production.
8. Easy integration into the plant’s communications system
9. Wireless communication system with Zigbee.
10. Preassembled joints and components.
Technical Parameters of Independent Horizontal Single Axis Solar
Tracker
| Technical parameters |
| Tracking Range | 士 60° |
| Driving System | Slew drive, 28VDC motor |
| Modules per Tracker | Max.90 modules per tracker |
| System Voltage | 1000 V or 1500 V |
| Ground Coverage Ratio | ≥ 25% |
| Foundation Options | All foundation types |
| Terrain Adaption | Up to 20% N-S slope |
| Power Supply Mode | Powered by PV strings, back-up lithium battery |
| Standard Design Wind Speed | 18m/s |
| Module Supported | All commercially available modules |
| Operation Temperature | -40℃ - 70℃ |
| Control Algorithm | Astronomical algorithms + Tilt sensor close loop |
| Tracking Accuracy | ≤ 1° |
| String-Powered | Yes |
| Backtracking | Yes |
About us:
Good Future Solar is a high-tech company in the clean energy
industry, registered in China, address: Zhengzhou East New
District, Henan Province, China. Our company is committed to
provide the solar products of high reliability with competitive
price to our domestic and foreign customers. Strive to build our
brand in terms of leading technology, high quality and efficient
service.Good future solar has a professional management team, we
have gains rich experiences on the solar power generation, and the
designing, manufacturing, commissioning of the single axis tracking
system. Our company always values customer’s needs as the highest
priority, ready to provides technical support to our customers at
any time, to solve their problems in the operation of PV power
plant and solar tracking system.
