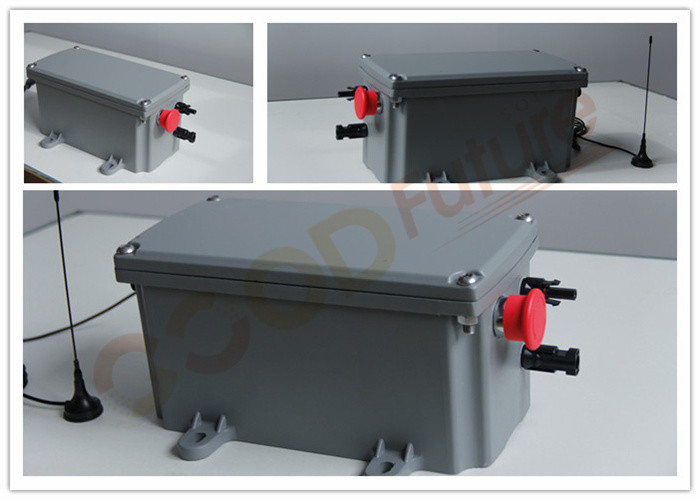

Remote Control 2P Single Axis Tracker Controller Wind Protection
Working principle:
The sun moves from east to west throughout the day over the solar
array, reaching its highest point at noon in the south. For the PV
plant to generate the optimum yield, the PV modules have to follow
the path of the sun, just like sunflower buds. Single axis tracker
controller continuously adjust the panels’ horizontal and height
angles (azimuth and elevation). In a storm, they turn the panels
out of the wind. The tracking control systems use astronomical or
sensor-supplied data. Electric motors with gears drives move the
panel support structures.
Technical Parameters of Remote Control 2P Single Axis Tracker
Controller Wind Protection
| Technical parameters |
| Tracking Range | 士 60° |
| Driving System | Slew drive, 28VDC motor |
| Modules per Tracker | Max.90 modules per tracker |
| System Voltage | 1000V or 1500V |
| Ground Coverage Ratio | ≥ 25% |
| Foundation Options | All foundation types |
| Terrain Adaption | Up to 20% N-S slope |
| Structure Material | Hot dip galvanized steel |
| Power Consumption | 0.2-0.5kWh/day |
| Power Supply Mode | Powered by PV strings, back-up lithium battery |
| Standard Design Wind Speed | 18m/s |
| String-Powered | Yes |
| Backtracking | Yes |
| Communication Options | LoRa wireless /RS 485 cable |
| Night Position | Yes |
Advantage:
1. Built Tough for Superior Reliability
Designed for high loads and extreme whether, our robust design is
warranted for 20 years. Fewer moving parts and anti-corrosive
materials minimize operation failure points.
2. Minimum O&M work
Due to the reduced amount of component, simplicity and robustness.
3. Fewer Parts / Faster to Install / Lower Cost
Prefabricated racking and up to 30% less piles than competitors
result in faster installation and
lower labor and material costs. This means minimizing risks and
lowering operational and capital expenditures.
4. Compatible with different foundation solutions
ramming, micropiles, concrete pads, predrilling, screw pile.
5. Backtracking Algorithm,
Avoiding shadows and increasing production.
6. Compatible with all PV modules
framed, thin-film, bifacial
Functions:
1. Automatic Tracking without Manual Settings
With good environmental adaptability, no affection by rainy and
cloudy weather, Wide Range of tracking angle improves the power
output.
2.Equipped with GPS to Guarantee the Accuracy of Time
High weather resistance contributes to safe and stable operation
between -40℃-70℃. The excellent electromagnetic compatibility
design makes the system stable and reliable.
3.Remote Communication, Group Control for Multi-Equipment
Automatically identify the failure, with automatic self-protection
and alarm; Quadruple over-current protection ensures the safety of
the whole system
4.Customized System Configuration
It can be designed according to customer’s specific requirement.
About us:
Good Future Solar is a fast growing solar company headquartered in
China, specializes in solar tracking systems, we design and
manufacture high quality trackers at a competitive cost. We also
provide a wide range of services, adapted to each project’s
requirements. Our products have a reputation for reliability, cost
competitiveness and advanced technology.
