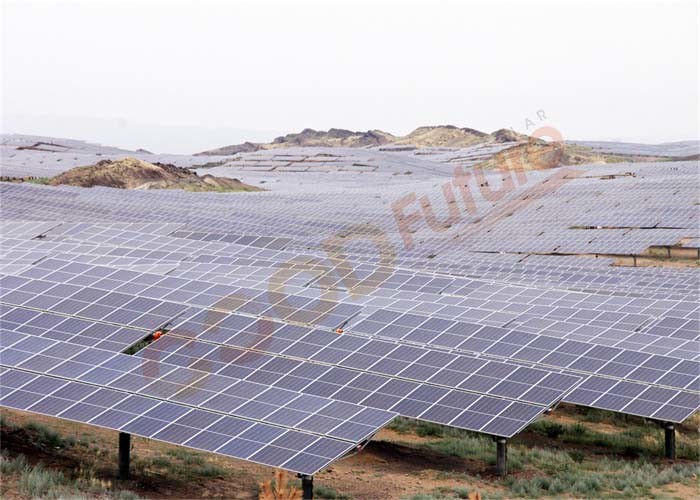

1MW Horizontal Backtracking Single Axis Solar Tracker with GPS High
Efficiency
Company Introduction
Good Future Solar is a Chinese leading company in the market of
solar tracking system, we focus on research and development of
solar products, after years accumulation, we have gain great
business sense and rich experience of product development. Good
Future Solar could offer not only solar tracking system and
condenser, but also the professional service for solar plant design
and installation plan to our customers.
Good Future Solar is located in Henan, China. It’s a supplier
specializing in the design, development and production of solar
tracking brackets. We are user-centered, adhering to the concept of
continuous in innovation in design and operation, committed to
providing innovative technology and cost-effective solution to
create value for customers, providing economic and safe solutions
and quality products for global solar photovoltaic power plants.
Parameters of Single Axis Sun Tracking System
| Technical Parameters |
| Tracking Range | 士 60° |
| Driving System | Slew drive, 24VDC motor |
| Modules per Tracker | Max.90 modules per tracker |
| System Voltage | 1000 V or 1500 V |
| Structure Material | Hot dipped galvanized/Pre-galvanized steel |
| Power Supply | Powered by PV strings,back-up lithium battery |
| Module Supported | All commercially available modules |
| Operation Temperature | -30℃ - 60℃ |
| Control Algorithm | Astronomical algorithms + Tilt sensor close loop |
| Backtracking | Yes |
| Night Position | Yes |
Product Info:
Solar tracking system is one of the most promising product
technology trends in solar today, Good Future 1P/2P Single axis
tracking system and solar tracker controller are our independently
developed products, which help users get more power generated. It
can boost solar power system production by continuously optimizing
the tracking algorithm of each individual row in response to site
features and changing weather conditions. compare with fixed model,
it make the solar panel receiving solar power with long time and
increase the solar power of solar panel.
Main Features
1. Multi-unit Linkage: Multi-unit Linkage will support stable
structure for large scale PV plant.
2. Maintenance-free Design: Single axis solar tracker can effectively
prevent the erosion caused by sand, dust, rain and snow by means of
latest polymer materials bearing.
3. Adapt to outdoor environment,working temperature -40~80C°.
4. Running in a high automation and intelligence,no pollution.
5. Hot-dipped zinc galvanization will extend the work life of the
brackets
6. Reverse tacking function, avoid the shadow, increase system
power generation by about 2-5%
7. All fasteners in the system are 304 stainless steel improve
structural strength and corrosion resistance
Product Application:
Good Future Sun Tracking System uses high precision astronomy
algorithm to calculate the angle of the sun, combined with high
performance micro controller (DSP core), making the system accurate
and reliable, not rainy days interference,using international
first-line brand tilt sensor, real-time closed-loop feedback
tracking angle, automatic tracking, without human intervention.
